Calix Multiple Socket Dual GU403 115/230v - 1762413
Calix Multiple Socket Dual GU403 115/230v - 1762413
£37.02 GBP inc VAT
Couldn't load pickup availability
2401397 - Multiple Socket Dual GU403 115/230v
No Longer available - please Use 1762425

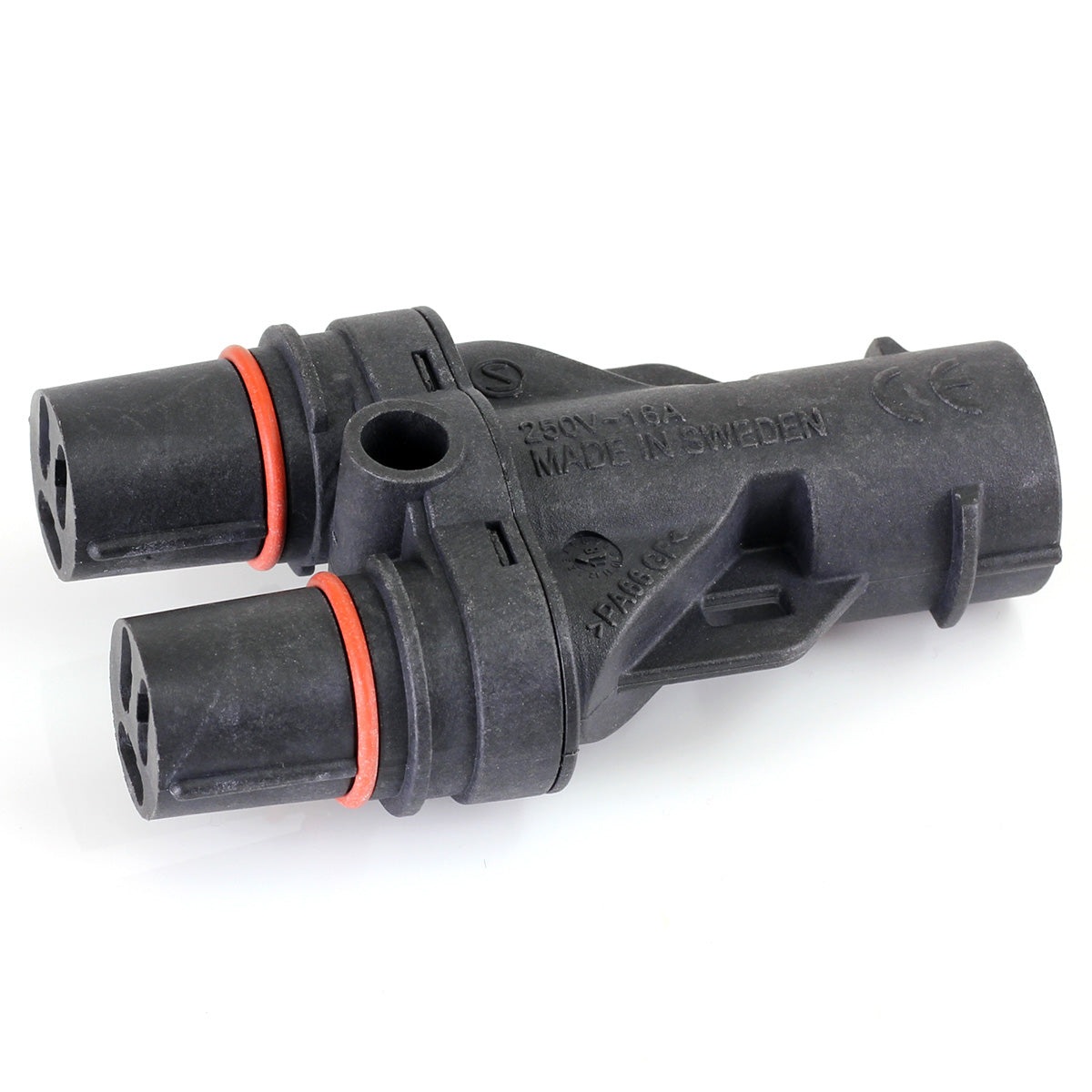

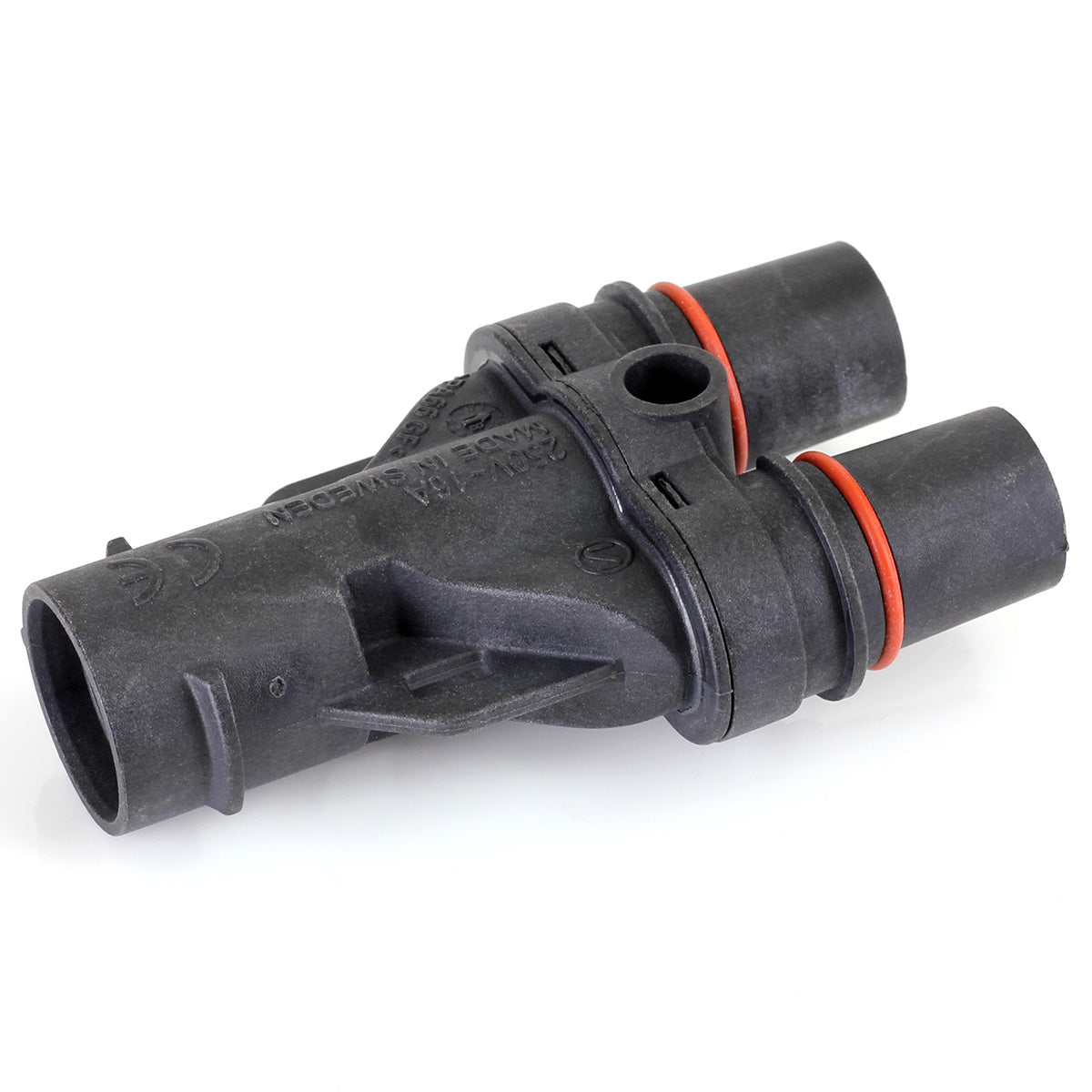

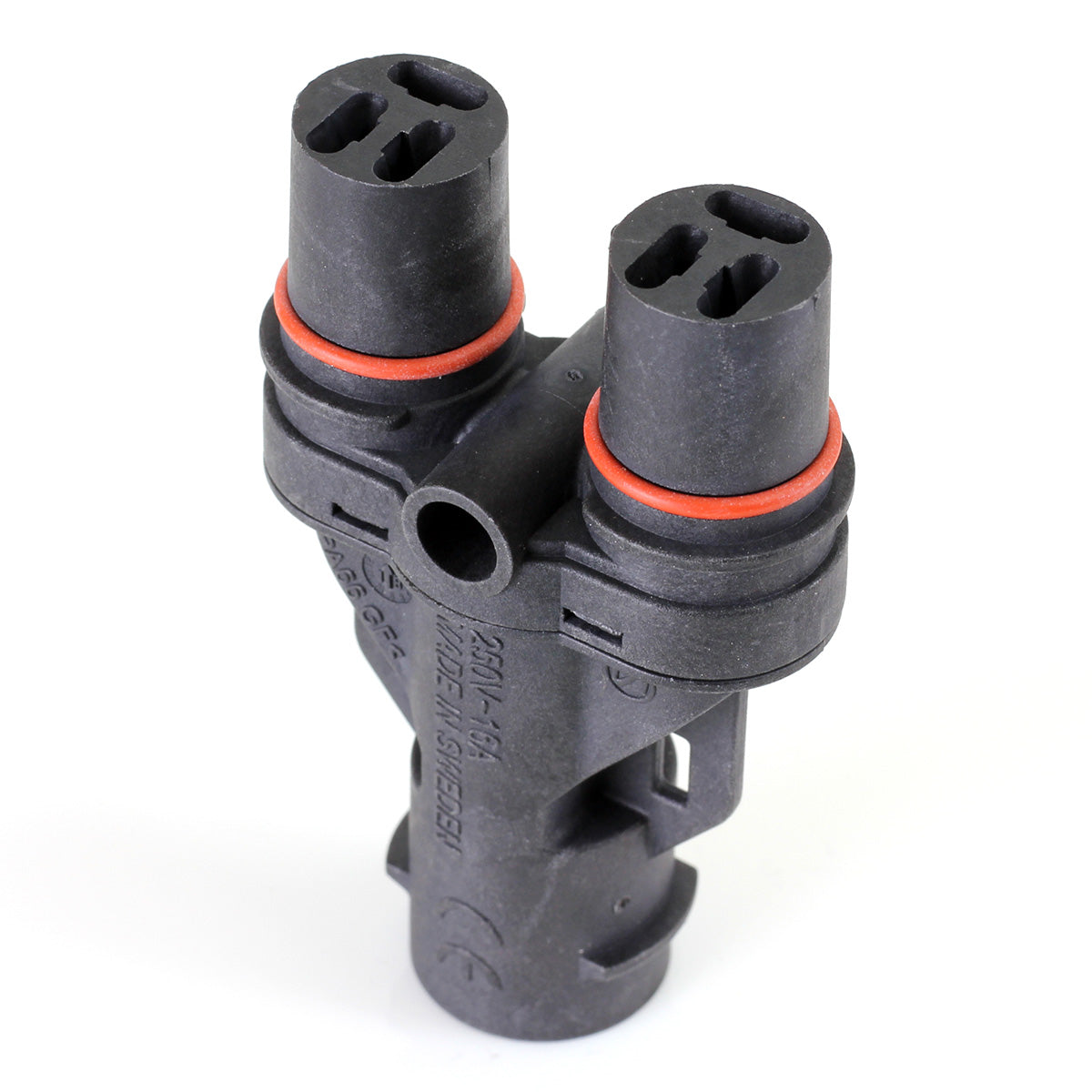

The Calix Multiple Socket Dual GU403 (2401397) is essentially a break-out port that will allow the user to introduce an extra 115/230v accessory into their Calix system such as a battery charger or interior heater etc. This unit will require a SK Extension Cable to connect to their additional accessory.
The dual socket can be mounted using either an M6 bolt through the centre, or cable tied through the slots on either side.
This item is unbagged (1762413) but an bagged version is also available (2401397).
| Specification | ||
| Nominal Voltage | 115 / 230v AC | |
| Max Voltage | 250v AC | |
| Maximum Current Draw | 15a @ 115v, 16a @ 230v | |
| Ingress Protection | IP46 | |
| Warranty | 3 Years from Date of Purchase | |
| Manufacturer | Manufactured in Sweden by Calix | |
| Part Number | 2401397 | |
The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can build a bespoke system to meet their specific requirements.
| Quantity | Description | Replacement Part Number |
| 1x | Multiple Socket Dual GU403 | 2401397 |
- Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
